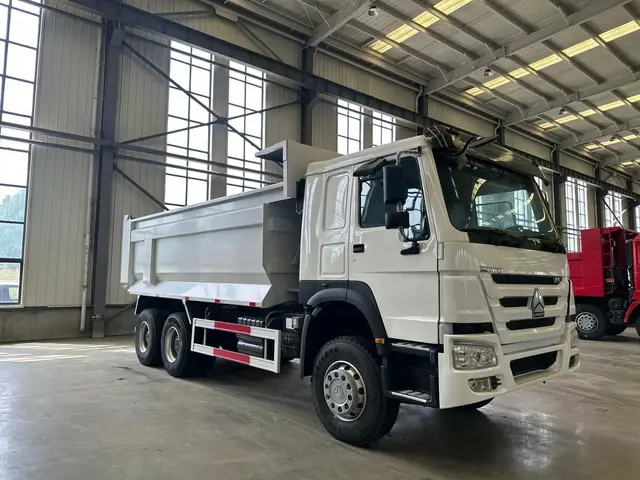

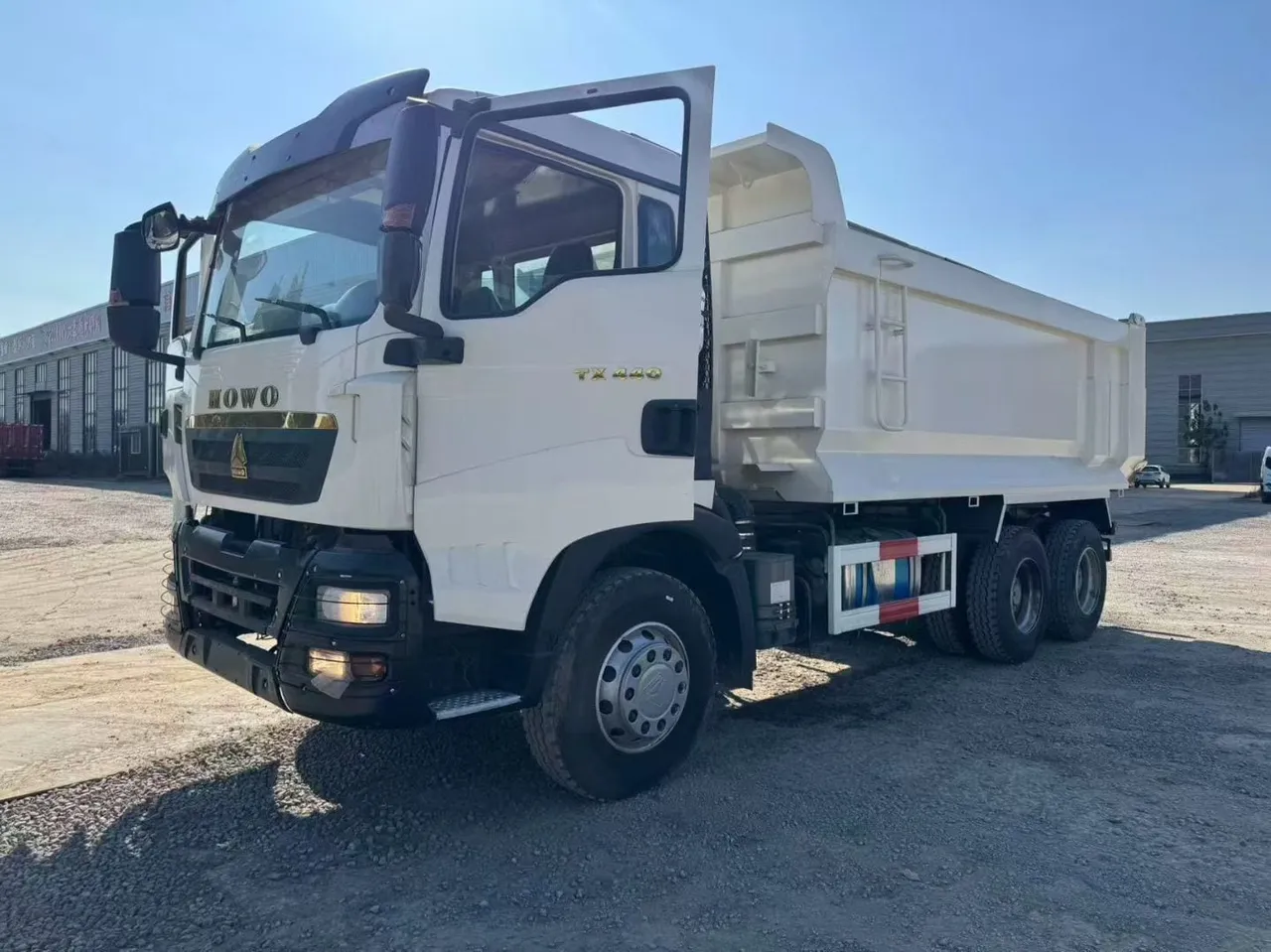

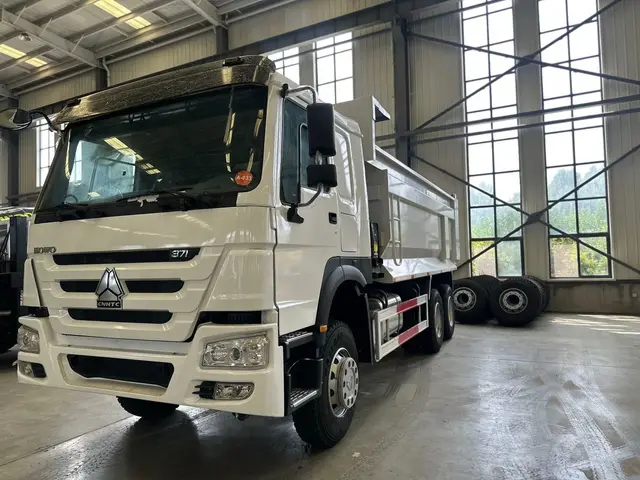

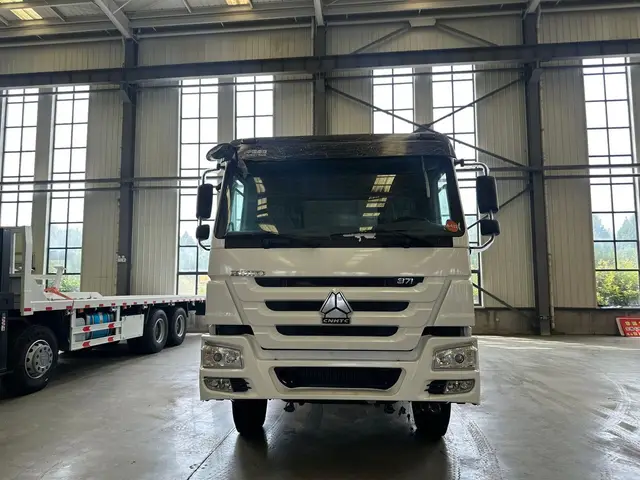

HOWO U-Shaped 6x4 Dump Truck — 371HP, Round-Bottom Tipper for Wet & Sticky Loads

What Is a U-Shaped Dump Truck Body — and Why Does It Matter?

Most people picture a tipper with a flat floor and square corners — that is a flat-body or square-body dump truck. It works fine for dry, free-flowing material like gravel or crushed stone. Put wet sand, clay, laterite, or mine slurry in it, and the story changes. Material packs into the rear corners, sticks to the flat floor, and refuses to slide out cleanly when the body lifts. Drivers end up idling with the body raised, waiting, sometimes manually clearing the load. That is lost time on every single cycle.

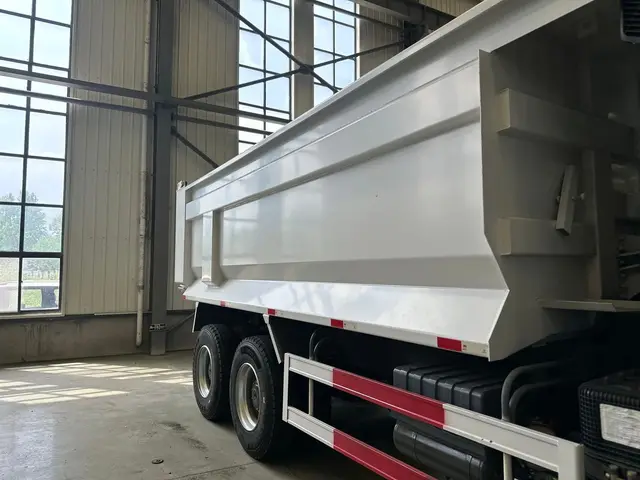

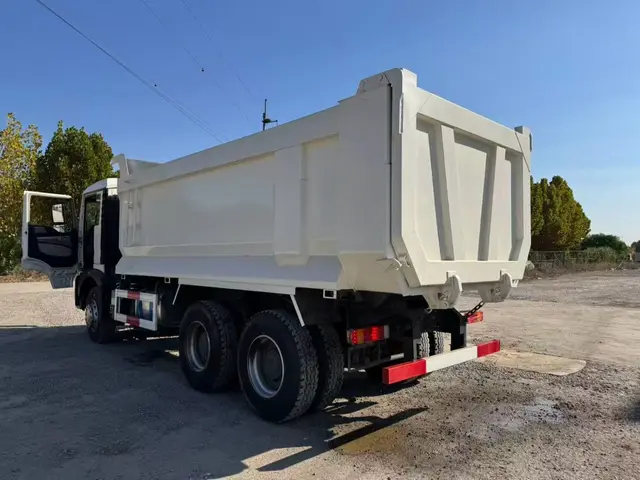

The U-shaped bucket dump truck — also called a U-body tipper or round-bottom tipper — solves this at the design level. The floor curves continuously from side wall to side wall with no hard corners to trap material. When the body lifts, gravity works the full surface area and the load rolls out in one clean movement. Less residual material means less carry-back weight, less overloading risk, and faster turnaround. On a busy site running 40–60 cycles a day, that difference is measurable.

The U-body also distributes load stress more evenly across the body structure. Square bodies concentrate stress at the corner welds — exactly the points that crack first on rough roads. The curved profile handles side-impact and load-shift better, which is relevant when you are hauling across rutted unpaved haul roads in Nigeria, Tanzania, or Zambia.

HOWO 6x4 U-Body — The Powertrain Behind the Tipper

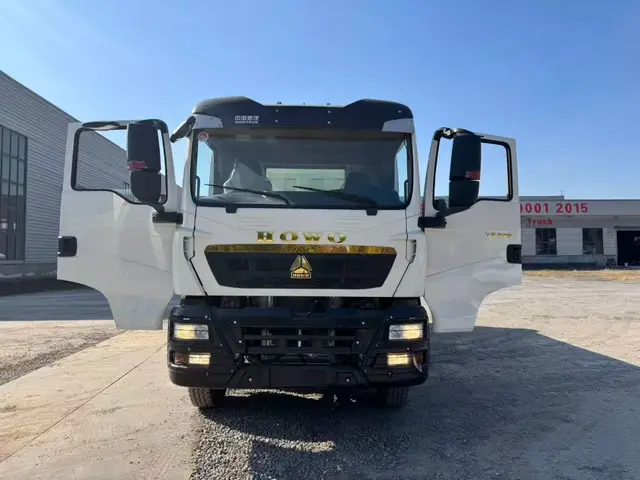

The chassis under this tipper is the HOWO 6x4 — one of the most common heavy truck platforms across sub-Saharan Africa and the Middle East for a simple reason: parts are everywhere. HOWO dealers and independent parts suppliers operate in South Africa, Kenya, Nigeria, Uganda, Ghana, Tanzania, the UAE, and Iraq. When something wears out, you are not waiting six weeks for an air freight shipment.

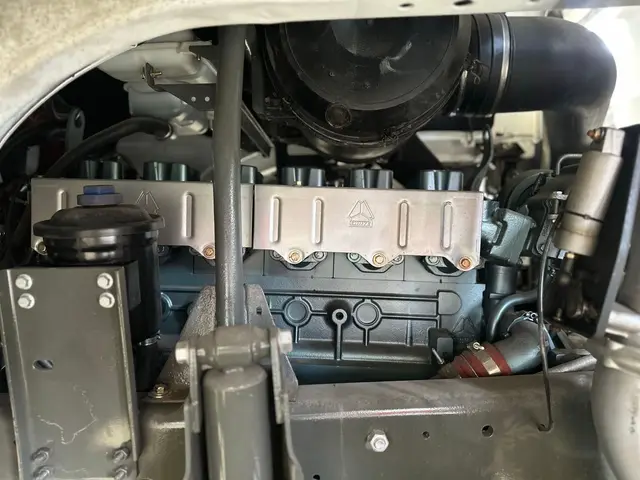

The engine is the WD615.47 at 371HP — a turbocharged diesel that has been in service long enough that most experienced mechanics in these markets already know it. It is not the most modern engine on paper, but it runs on the fuel quality available in most African and Middle Eastern markets, it tolerates heat, and the repair manuals and spare parts are genuinely accessible.

The HW19710 10-speed gearbox gives the driver enough ratio range to manage loaded climbs on unpaved gradients and still run efficiently on longer paved sections between site and dump. The 6x4 drive layout — two rear driven axles — is the right choice for heavy tipper work: it spreads the loaded axle weight, improves traction on soft ground, and meets the gross vehicle weight requirements that most African port and road authorities expect for a standard tipper. See our full 6x4 dump truck range for other models on the same platform. 12R22.5 tyres are the standard fitment — a size that is stocked in Johannesburg, Mombasa, Lagos, Kampala, and Dubai. The 300-litre fuel tank keeps the truck productive on longer hauls without constant refuelling stops.

Where This Truck Performs Best — Specific Conditions and Markets

The HOWO u-shape dump earns its place in a few specific operating environments where the U-body advantage is real, not theoretical.

• West Africa rainy season — laterite hauls. Laterite is the red iron-rich soil found across Ghana, Nigeria, Côte d'Ivoire, and Cameroon. Dry, it loads and tips easily. Wet, it is a paste. A square-body tipper in rainy-season laterite haul is slow and requires manual clearing after almost every tip. The round-bottom U-body handles wet laterite without that problem. If you are working road construction, housing development, or mining in this region from May through October, the U-body pays back quickly in cycle time alone.
• Uganda and East Africa clay highlands. Uganda's central and western regions sit on deep clay soils. Contractors running earthwork for infrastructure or agricultural land development here deal with sticky, heavy material constantly. The U-body's self-discharge performance is directly relevant. The same applies to clay hauls in Tanzania and parts of Zambia.
• Mine slurry and wet ore. Small and mid-scale mining operations in Zimbabwe, Zambia, and the DRC move material that is part solid, part liquid. The HOWO 6x4 U-body handles that category well. The cargo box dimensions — 5.8 × 2.55 × 1.7 m — give a working volume that suits this kind of bulk material without the body being so large the truck is perpetually overloaded.
• Sand and aggregate supply in the Gulf. UAE and Iraqi construction sites run high-volume sand and aggregate supply chains. The U-body keeps the supply chain moving — less downtime per tip, less load loss, cleaner operation on site.

This is also a truck that operators across these markets have been running for years. Mechanics know the WD615 engine. Parts agents stock the consumables. That supply chain familiarity is worth more than spec-sheet horsepower in a market where downtime is the biggest cost.

Refurbishment and What We Check Before a Unit Ships

Every dump truck we export goes through a physical inspection and documented refurbishment process before it leaves. For the HOWO U-body tipper, that process covers the areas that matter most for a tipper in heavy-cycle operation:

• U-body and hydraulic tipping system: Body floor thickness checked, curved sections inspected for cracks at weld lines, hydraulic ram seals replaced if showing wear, pump pressure tested through full lift cycle.
• Engine and drivetrain: WD615 compression test, oil system, cooling system, injector condition. HW19710 gearbox shifted through all 10 speeds under load. Clutch and propshaft universals checked.
• Axles and brakes: Rear axle seals, wheel bearing play, brake drum thickness. Air brake system pressure-tested — this is a 6x4 tipper, brake condition is not a box-tick item.
• Tyres: 12R22.5 tread depth measured and recorded. Replacements fitted where below operational minimum.

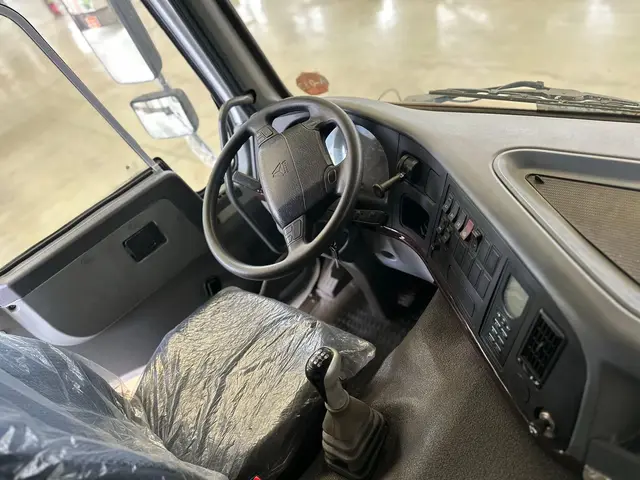

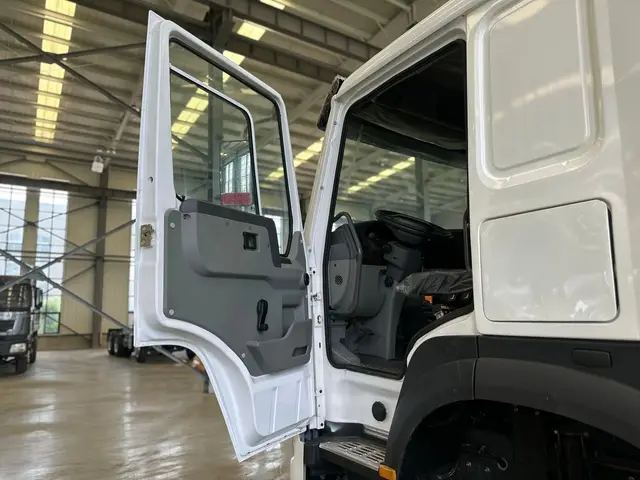

• Cab: Electrical, lights, instruments. Air conditioning if fitted. Cab mounts checked — these crack on high-vibration tipper work.

We issue a condition report for each unit. We do not make up numbers — if something is marginal, we tell you, and you decide whether you want it addressed before shipping or reflected in price.

LHD and RHD — Import and Shipping Logistics

We convert HOWO truck units to left-hand drive or retain right-hand drive depending on the destination market. LHD is the standard for most West African countries, the Middle East, and continental markets. RHD suits South Africa, Kenya, Uganda, Tanzania, Zambia, Zimbabwe, and other southern and eastern African markets that follow UK driving rules.

LHD/RHD conversion is done in-house. We do not outsource it and we do not cut corners — steering column, pedal assembly, and instrument cluster are properly relocated, not adapted around the original position. If you are importing into a market with strict technical inspection at port, this matters.

On shipping: we work CIF to major ports including Durban, Mombasa, Lagos (Apapa), Dar es Salaam, Tema, and Jebel Ali. CIF means cost, insurance, and freight are covered to the destination port — you handle clearance at your end. Lead time from confirmed order to vessel loading is typically 2–4 weeks depending on the unit's refurbishment status at order time. See our trucks for sale in South Africa page if you are sourcing for the southern African market specifically.

Buyer Checklist — Questions to Ask Before You Order a U-Body Tipper

If you are comparing options or talking to multiple suppliers, here is what actually matters for a used HOWO u-shaped dump truck purchase:

• What material are you hauling and what is its moisture content? If it is dry gravel or quarry stone, a standard flat-body may cost less and work fine. If it is laterite, clay, wet sand, or slurry — the U-body is the right choice and the price difference pays back in cycle time.
• What is the drive-side requirement at destination port? Confirm LHD or RHD before ordering — post-arrival conversion is expensive and sometimes legally complicated.
• What is the axle load limit on your primary haul road or at the weighbridge you pass through? The 6x4 layout distributes weight across three axles, which helps, but you still need to know your legal payload ceiling.
• Does your destination have 12R22.5 tyre availability? In most of the markets we serve, yes. Confirm locally before assuming.
• Parts access — is there a HOWO dealer or independent WD615 parts supplier within reach of your operation? If not, we can advise on stocking a basic spare parts kit with the truck.
• What condition report and photos do you need before committing? Ask for them. We provide them as standard.

For a broader look at the platform, see our HOWO dump truck range or the HOWO 371 specification page.
